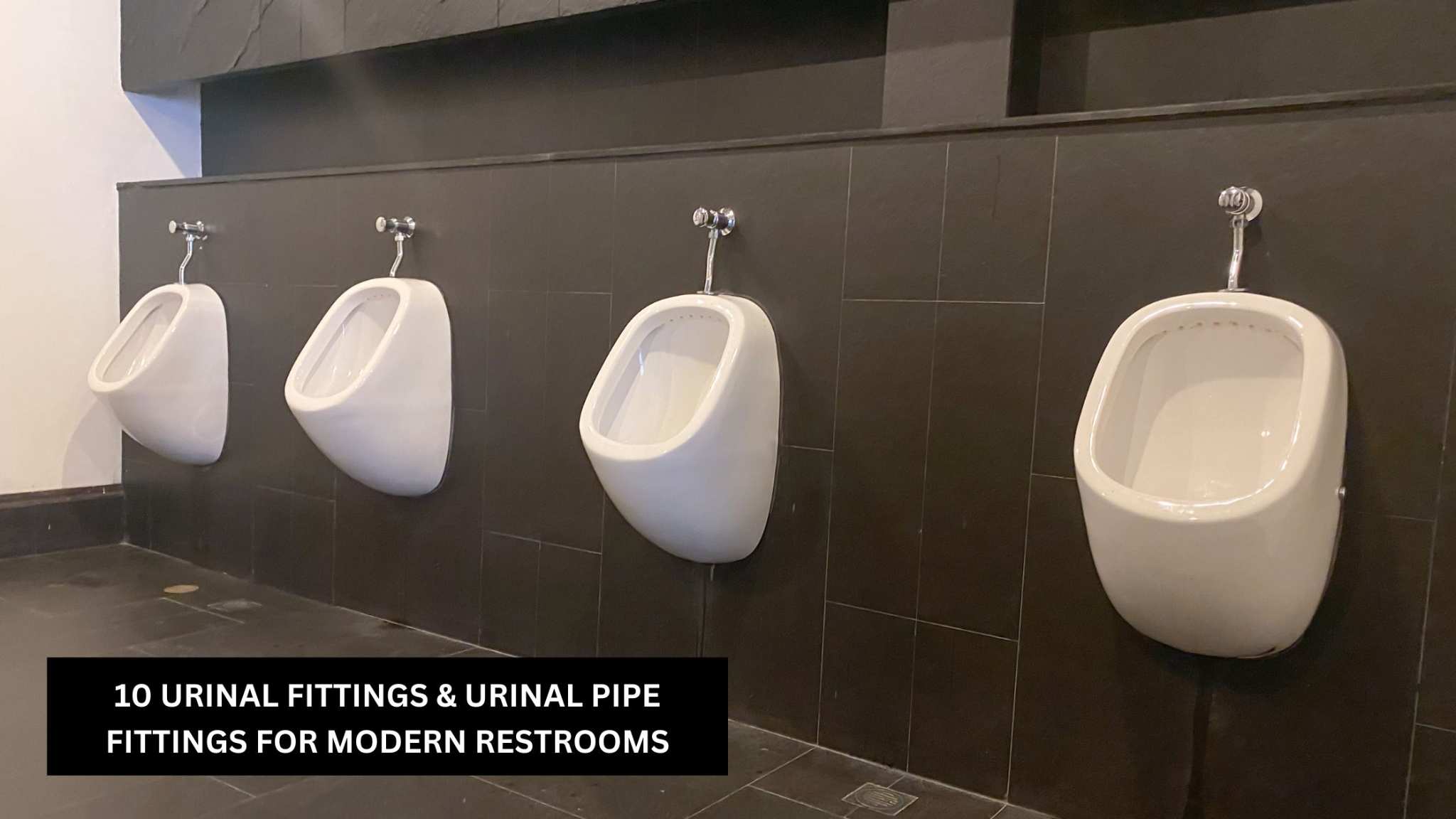

10 Urinal Fittings & Urinal Pipe Fittings for Modern Restrooms

Efficient bathrooms depend on well-planned fixtures, and urinal fitting is a key element in achieving that balance. Proper techniques ensure hygiene, optimise water usage, and make the best use of available space. From modern designs to practical installation methods, innovative approaches to urinal fitting can improve functionality and provide long-term convenience in both residential and commercial restrooms.

Understanding Urinal Fitting

A good urinal fitting plan keeps bathrooms hygienic, easy to clean, and simple to service. It covers fixture choice, inlet and outlet placement, traps, flush controls, and all the urinal pipe fittings that connect to the water supply and drain line. When these parts work together, you get fewer smells, leaks, and a smoother user experience in homes, offices, and public washrooms.

Types of Urinals

Urinals come in different designs to suit varying space, usage, and hygiene needs, with fittings tailored for both functionality and convenience.

• Wall-mounted urinals: A popular choice for modern bathrooms, these wall-mounted urinals save floor space and are easy to clean. Urinal fitting can be done with either concealed or exposed pipes.
• Corner urinals: Ideal for compact restrooms, they make efficient use of unused corners with neatly integrated fittings.
• Sensor-based urinals: Equipped with touchless flushing, they enhance hygiene while cutting water usage.
• Electronic timed systems: Designed for busy areas, these allow programmable flush cycles to maintain cleanliness.
• Ladies’ urinals: Specially designed for women, offering comfort, privacy, and compatible pipe fittings for easy installation.

10 Urinal Fitting Techniques for Efficient Bathrooms

1. Sensor-based flush systems

Install infrared sensors with solenoid valves to ensure consistent flushing. Adjust the delay and duration according to the bowl shape and water pressure. This setup minimises contact, reduces water waste, and keeps the urinal clean after each use.

2. Water-saving dual-volume valves

Choose valves with adjustable flow settings to reduce water use for liquid-only flushes. Many modern kits are compatible with standard urinal pipe fittings, making retrofitting simple. Adjust the settings carefully to ensure proper flushing and prevent odours.

Related Post :Waterless Urinals: How They Work and Their Benefit

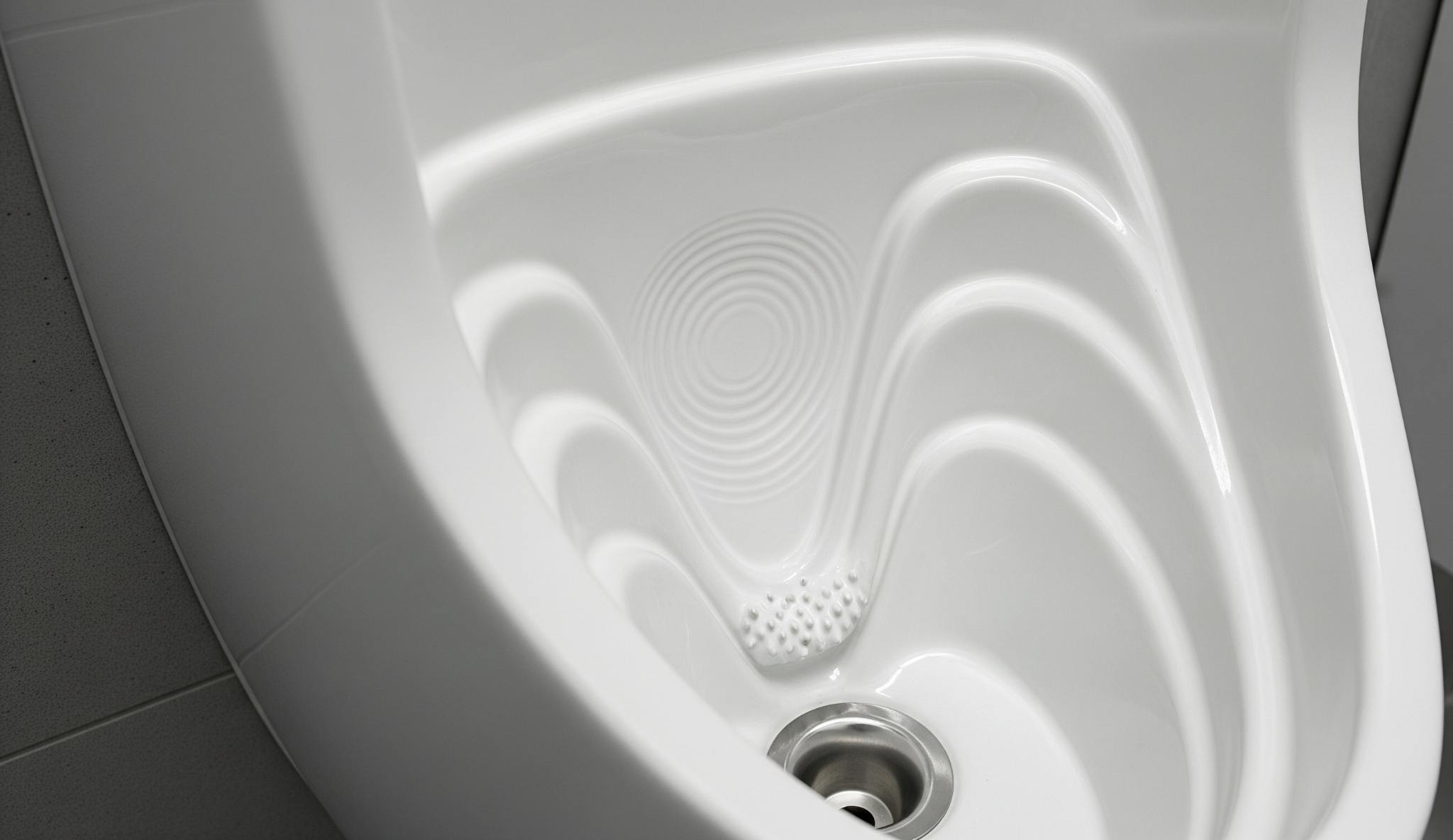

3. Anti-splash bowl geometry

Choose urinal bowls with ribbed or angled impact zones, and install them at the proper height with the correct trap seal depth. This combination minimises splashback, reduces cleaning effort, and helps keep the floor dry.

4. Modular pipe fittings for fast service

Use compression unions, push-fit couplers, and isolation valves at key points to ensure a secure connection. Modular urinal pipe fittings enable faster repairs, minimise downtime, and facilitate the replacement of parts without damaging tiles.

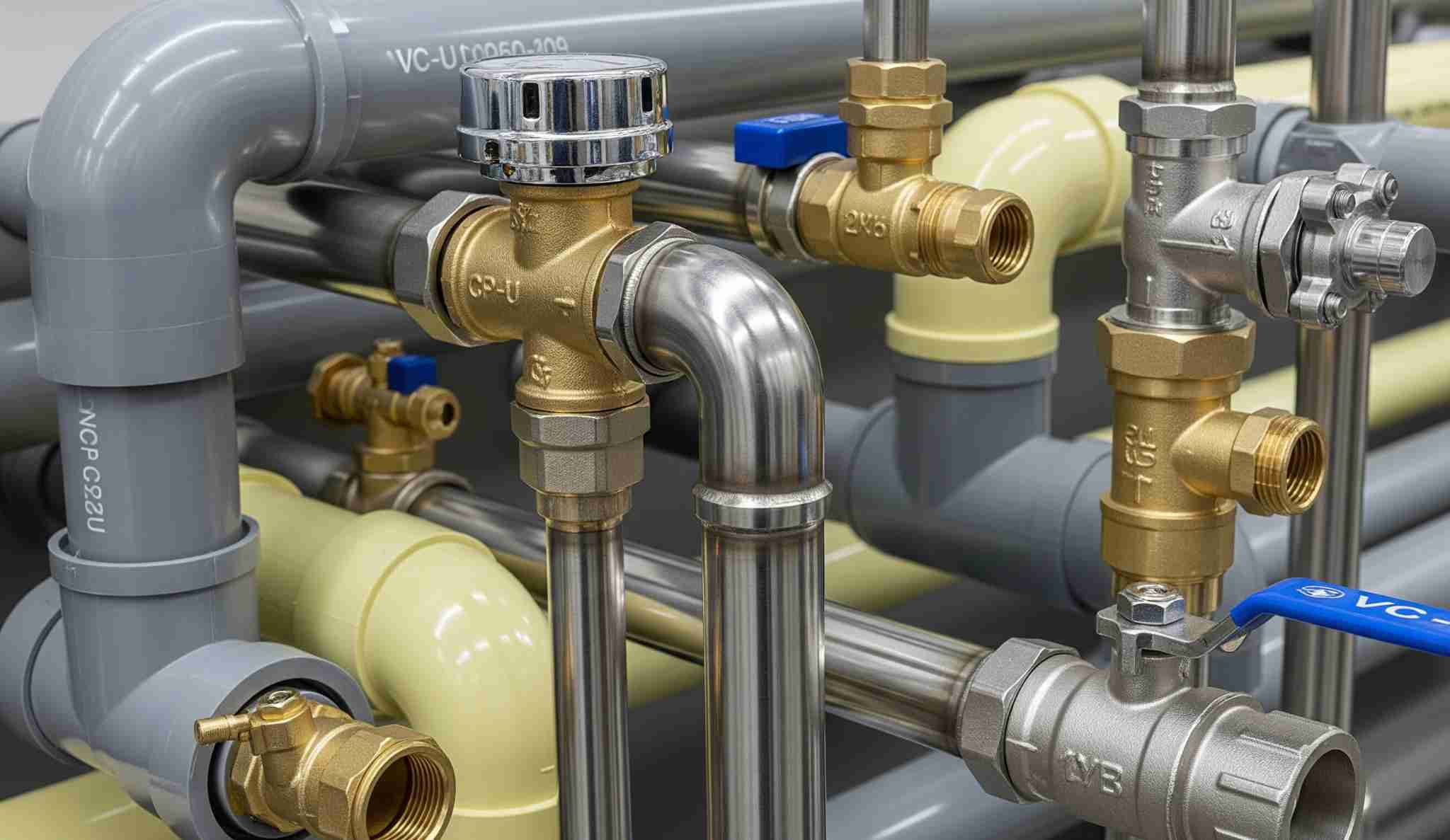

5. Corrosion-resistant materials

Inlet pipes and traps should be PVC-U, CPVC, or stainless steel in hard-water or coastal areas. Brass with high-quality plating works well for visible parts. Better materials mean fewer leaks and longer life.

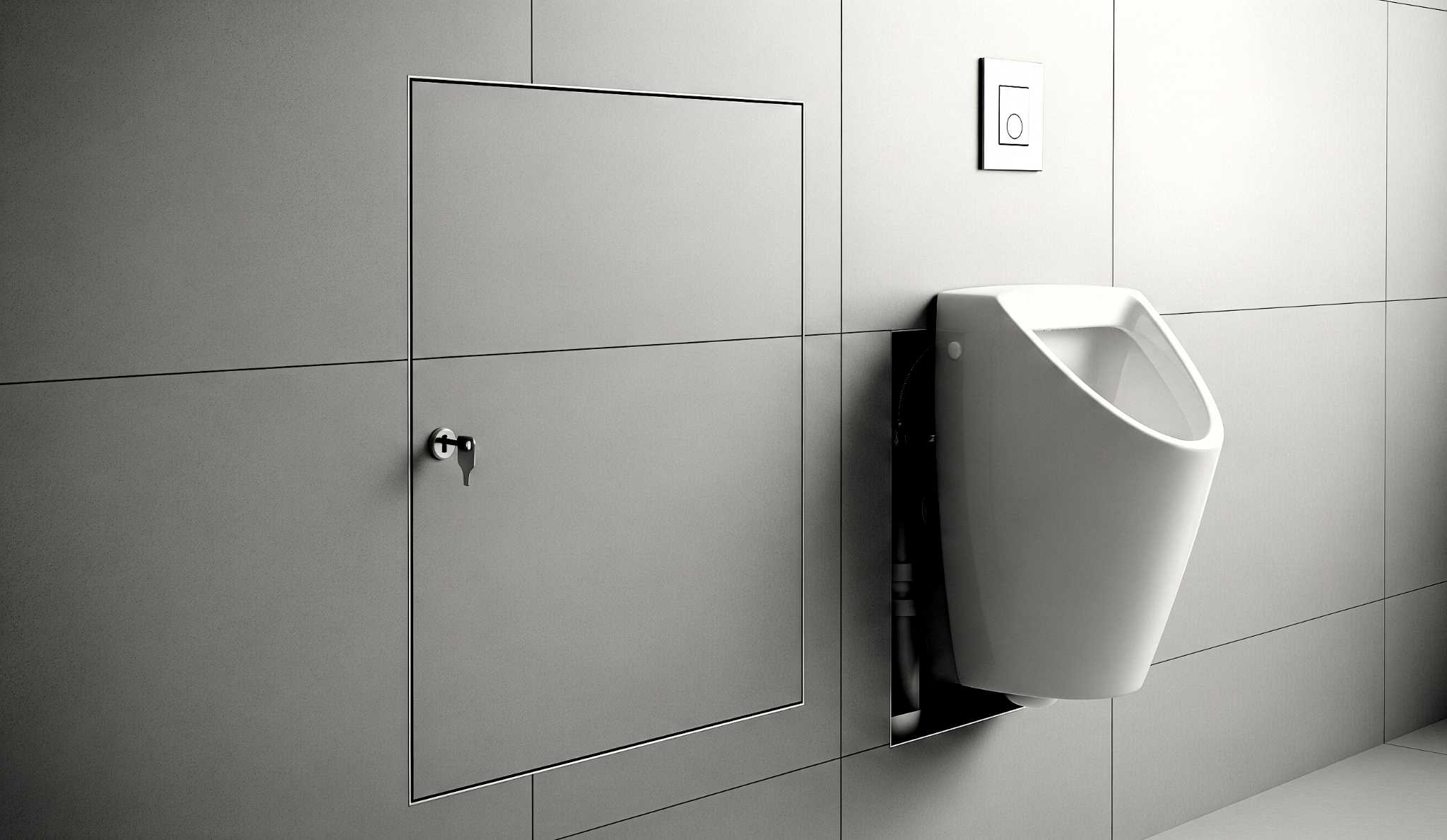

6. Concealed installations with access panels

Hide pipes in walls or service ducts, but add an access hatch behind the urinal. This keeps the room sleek while allowing quick checks on valves, traps, and joints without breaking finishes.

Related Post : S Trap vs P Trap Toilets: A Complete Comparison Guide

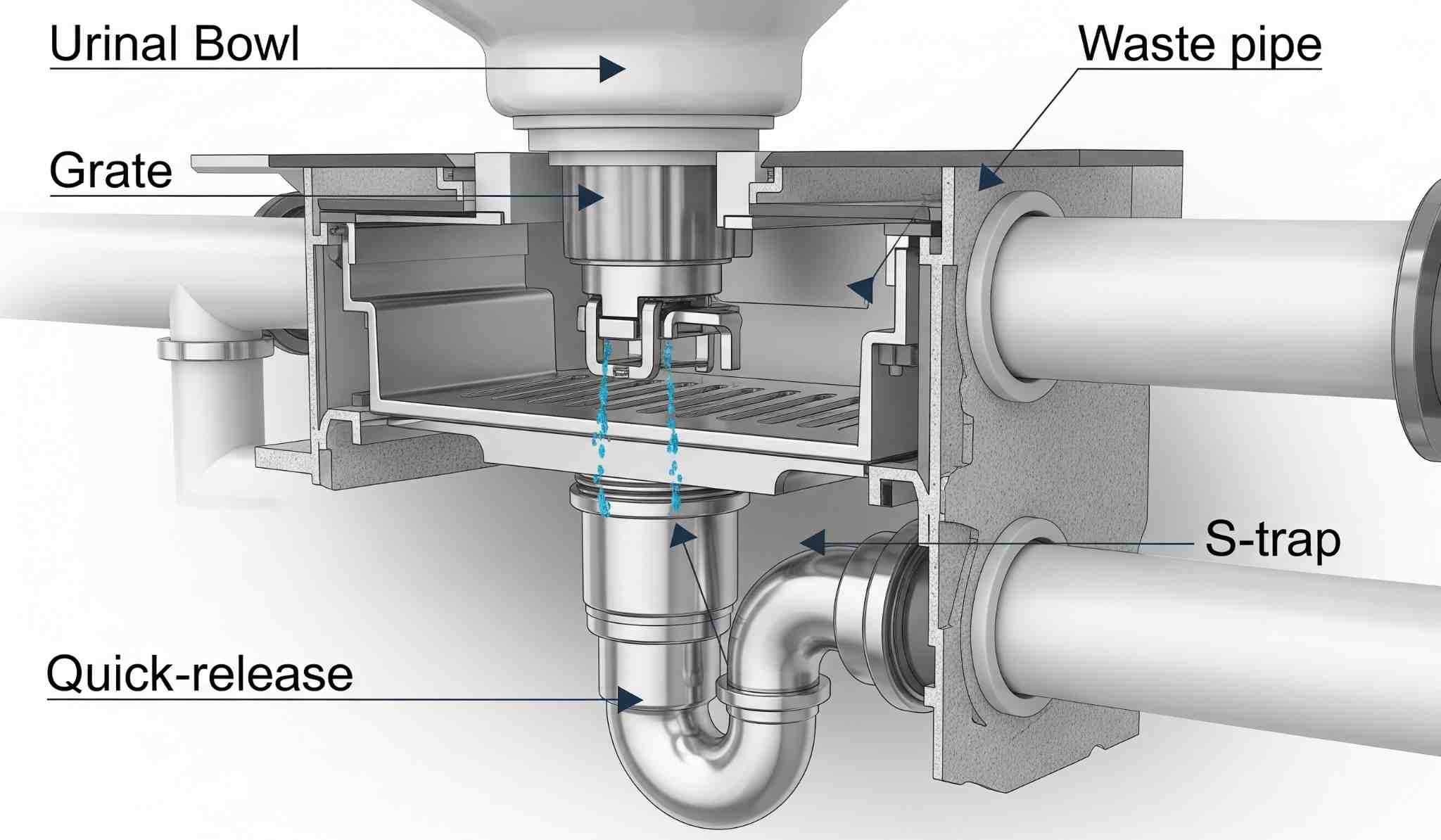

7. Quick-release trap and grate systems

Use traps with bayonet or quarter-turn locks, allowing staff to clear blockages quickly and efficiently. Installing a removable strainer at the bowl outlet prevents debris from entering the trap and drain.

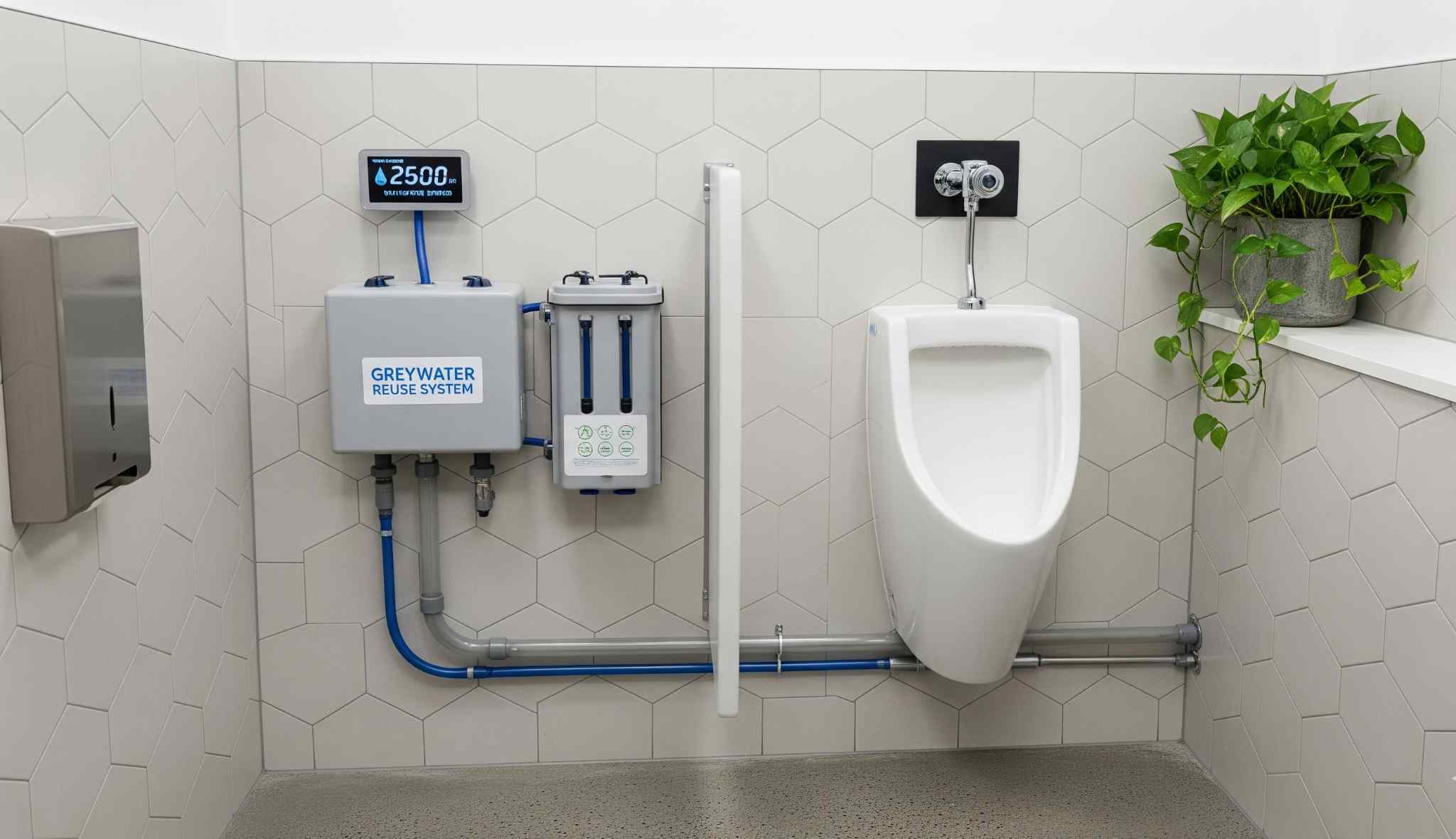

8. Eco-friendly water reuse

If local rules allow, connect the flush to treated greywater with a backflow preventer. Keep urinal pipe fittings clearly labelled, and use dedicated lines to avoid cross-connection risks.

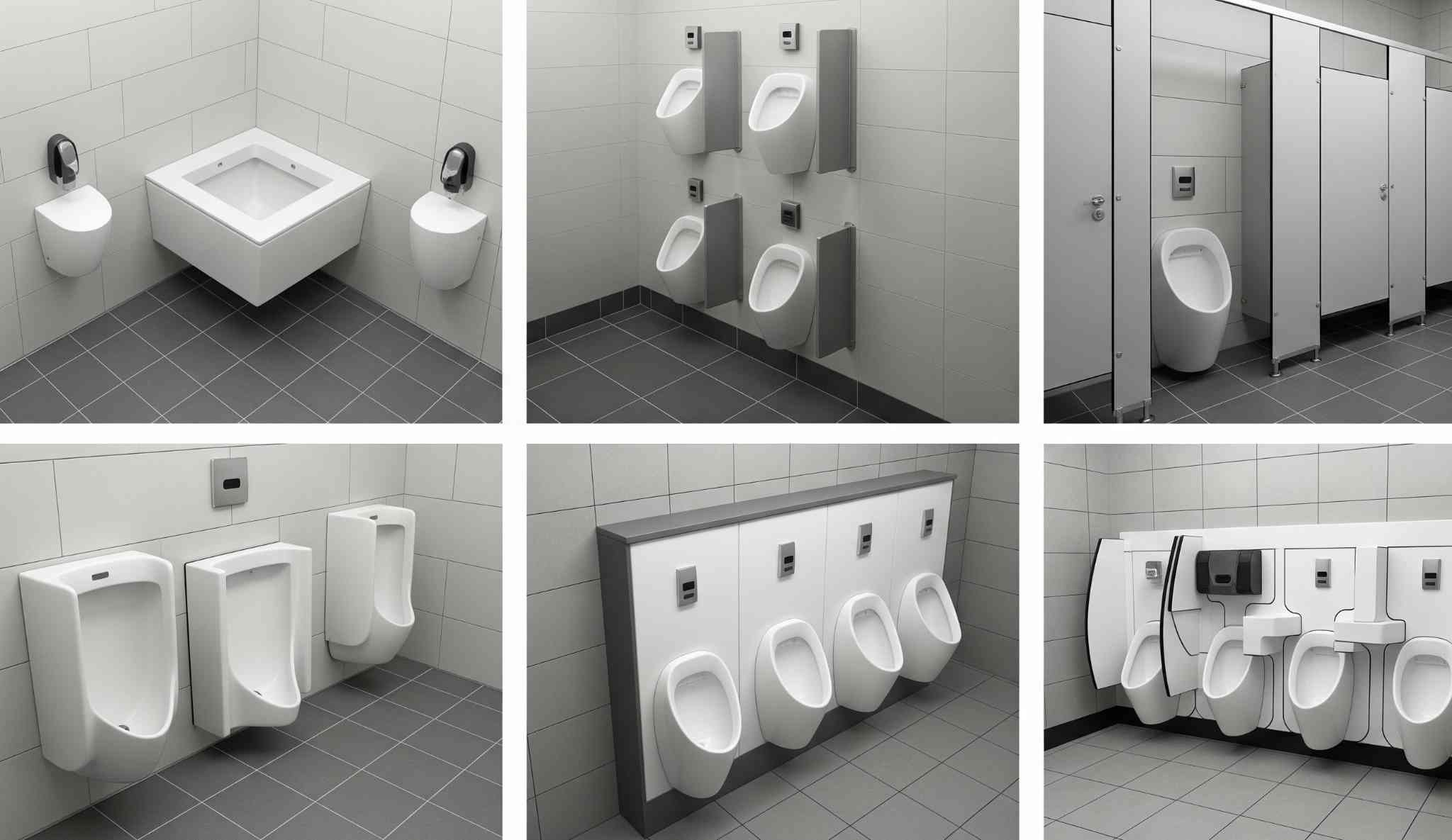

9. Space-saving layouts

Plan centerlines 600 mm apart for adult rows, with at least 600 mm clear in front. For corner models, allow side clearance for elbows. Smart spacing improves flow and privacy without enlarging the room.

10. Easy-maintenance plumbing setups

Install angle valves with filters on every water inlet and a cleanout tee on the waste line near each urinal. These small additions make it easier to manage limescale, sand, or hair clogs during routine maintenance.

Step-by-Step Guide to Installing Urinal Pipe Fittings

Correctly setting up urinal pipe fittings ensures smooth operation and long-lasting performance. Follow these steps to ensure a secure and leak-free installation.

1. Mark and mount: Mark the centerline and rim height. Fix the carrier or hangers securely.
2. Inlet connections: Fit the angle valve and filter, then connect the flush pipe. Test static pressure.
3. Trap and waste: Install a P-trap or S-trap per layout. Connect to the branch line using solvent-welded PVC-U or gasketed couplings.
4. Seal and set: Apply silicone at wall interfaces and anchor points.
5. Test: Flush repeatedly. Check for leaks, proper trap seal, and even water spread over the bowl.
6. Finish: Install access panels, sensor plates, and handles, and apply final covers.

Maintenance Tips for Long-lasting Urinal Fittings and Pipes

Regular urinal fitting maintenance and urinal pipe maintenance are essential for ensuring hygiene, efficiency, and durability. Establish a routine cleaning schedule to prevent scale buildup and stains, and inspect all connections for leaks or loose fittings. For sensor-equipped urinals, check calibration and adjust flush timing as needed to maintain water efficiency. Replace worn parts, such as seals, valves, or strainers, promptly to avoid blockages or water damage. Following these best practices helps keep urinals fully functional, reduces maintenance costs, and extends the lifespan of both fittings and pipes.

Why Choose Simpolo Tiles & Bathware for Your Urinal Fitting Needs

With designs built for Indian conditions, Simpolo Tiles & Bathware pairs smart bowls with reliable valves and compatible urinal pipe fittings. You get durable materials, clean lines that are easy to maintain, and sizes that suit homes, clinics, offices, and hospitality spaces. Expert guidance helps you plan the layout, select the right trap and flush, and coordinate finishes for a hygienic, modern restroom.

Related Post :Choosing the Right Urinal Size for Your Home

Conclusion

Efficient urinal fitting goes beyond basic installation. It combines smart design, quality materials, and proper maintenance to ensure hygiene, water savings, and long-lasting performance. By following innovative techniques, choosing the right fixtures, and keeping up with regular checks, bathrooms can remain functional, clean, and user-friendly for years. Partnering with reliable brands like Simpolo Tiles & Bathware ensures access to durable fittings, expert guidance, and bathware solutions tailored to both residential and commercial spaces, making it easier to create efficient, modern, and low-maintenance restrooms.

FAQs About Urinal Fitting

What are the best materials for urinal pipe fittings to ensure durability?

PVC-U or CPVC for waste and flush lines, stainless steel or high-grade plated brass for exposed parts. They resist corrosion and scale better.

How often should urinal pipe fittings be inspected or replaced?

Do a visual check quarterly and a full service yearly. Replace seals, filters, and any pitted valves as needed. In hard-water areas, descale more often.

Can sensor-based urinal fittings really save water effectively?

Yes. Properly set sensors deliver only the volume required. Many sites report noticeable cuts in water use with cleaner bowls and fewer odours.

What are the key signs of faulty urinal pipe fittings?

Damp walls, floor puddles, slow drainage, persistent smells, and staining around joints suggest leaks, blockages, or poor trap seal.

Is it possible to retrofit existing urinals with innovative pipe fittings?

Add isolation valves, push-fit unions, cleanout tees, and sensor kits compatible with your pressure and bowl. Verify sizes before purchase.

Are there eco-friendly urinal fitting options available in India?

Yes. Low-volume valves, sensor systems, and approved greywater connections reduce consumption. Use backflow preventers and follow local codes.
